ILedDriver Interface Reference

Represents an LedDriver More...

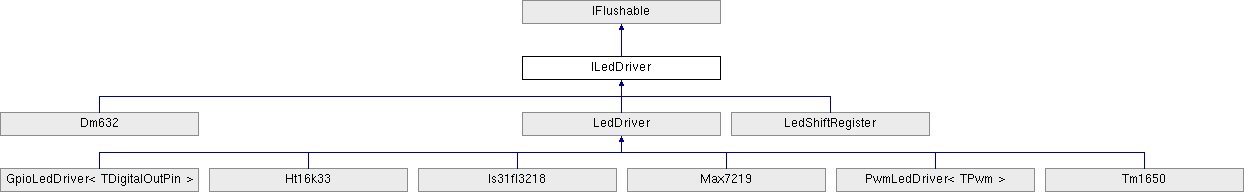

Inheritance diagram for ILedDriver:

Public Member Functions
void	LedStateChanged (Led led)
	This is called by the LEDs to force the driver to update the LED state More...
void	LedBrightnessChanged (Led led)
	This is called by the LEDs to force the driver to update the LED brightness More...
Task	Clear ()
	Clear (turn off) all LEDs More...
Task	FlushAsync (bool force=false)
	Flush changed data to the port expander More...

Properties
bool	HasGlobalBrightnessControl [get]
	Gets or sets whether this controller supports global brightness control. More...
bool	HasIndividualBrightnessControl [get]
	Gets or sets whether this controller's LEDs have individual brightness control (through PWM or otherwise). More...
double	Brightness [get, set]
	The brightness, from 0.0-1.0, of the LED. More...
IList< Led >	Leds [get]
	The collection of LEDs that belong to this driver. More...
bool	AutoFlush [get, set]
	Whether this interface should automatically flush new values or not More...
IFlushable	Parent [get]
	Gets or sets the parent flushable device (if it exists); if this property is set by this driver, it is expected that flushing the parent will also flush this device More...

Detailed Description

Represents an LedDriver

Member Function Documentation

LedStateChanged()

void LedStateChanged

(

Led

led

)

This is called by the LEDs to force the driver to update the LED state

Parameters

led	The LED to update

LedBrightnessChanged()

void LedBrightnessChanged

(

Led

led

)

This is called by the LEDs to force the driver to update the LED brightness

Parameters

led	The LED to update

Clear()

Task Clear

(

)

Clear (turn off) all LEDs

Returns

Implemented in LedShiftRegister, LedDriver, and Dm632.

FlushAsync()

Task FlushAsync ( bool  force = false )

inherited

Flush changed data to the port expander

Parameters

force

whether to flush all data to the port expander, even if it doesn't appear to have been changed

Implemented in Max7219, Pca9685, LedDriver, BarGraph, ChainableShiftRegisterOutput, RgbLed, Tm1650, Ht16k33, GraphicDisplay, Apa102, Is31fl3218, LedDisplayCollection, GpioLedDriver< TDigitalOutPin >, and PwmLedDriver< TPwm >.

Property Documentation

HasGlobalBrightnessControl

bool HasGlobalBrightnessControl

get

Gets or sets whether this controller supports global brightness control.

HasIndividualBrightnessControl

bool HasIndividualBrightnessControl

get

Gets or sets whether this controller's LEDs have individual brightness control (through PWM or otherwise).

Brightness

double Brightness

getset

The brightness, from 0.0-1.0, of the LED.

This property is meaningless when HasGlobalBrightnessControl is false

Leds

IList<Led> Leds

get

The collection of LEDs that belong to this driver.

AutoFlush

bool AutoFlush

getsetinherited

Whether this interface should automatically flush new values or not

Parent

IFlushable Parent

getinherited

Gets or sets the parent flushable device (if it exists); if this property is set by this driver, it is expected that flushing the parent will also flush this device

This property is designed to make LED displays, which operate across groups of LEDs (and possibly groups of LED drivers), much more efficient to update. Many commonly-used LED drivers are shift registers that are chained together; since these cannot be individually addressed, any write to one must include a write to all the other ones. By properly setting the parent shift register in each chain, displays can optimize these updates.

---

The documentation for this interface was generated from the following file:

• F:/Git/treehopper-sdk/NET/API/Treehopper.Libraries/Displays/ILedDriver.cs
