Supports generic 8-bit or 16-bit LED shift register drivers, such as the STP16CPC26, CAT4016, TLC5916, etc More...

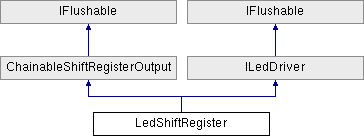

Inheritance diagram for LedShiftRegister:

Public Types
enum	LedChannelCount { SixteenChannel = 16, EightChannel = 8 }
	The number of channels of this shift register More...

Public Member Functions
	LedShiftRegister (Spi SpiModule, SpiChipSelectPin LatchPin, LedChannelCount ChannelCount=LedChannelCount.SixteenChannel, DigitalOut OutputEnablePin=null, double speedMhz=6)
	Construct an LED shift register attached directly to a board SPI module More...

	LedShiftRegister (Spi SpiModule, SpiChipSelectPin LatchPin, Pwm OutputEnablePin, LedChannelCount ChannelCount=LedChannelCount.SixteenChannel, double speedMhz=6)
	Construct an LED shift register attached directly to a board SPI module More...

	LedShiftRegister (ChainableShiftRegisterOutput upstreamDevice, LedChannelCount ChannelCount=LedChannelCount.SixteenChannel, DigitalOut OutputEnablePin=null)
	Construct an LED shift register attached to the output of another shift register More...

	LedShiftRegister (ChainableShiftRegisterOutput upstreamDevice, Pwm OutputEnablePin, LedChannelCount ChannelCount=LedChannelCount.SixteenChannel)
	Construct an LED shift register attached to the output of another shift register More...

Task	Clear ()
	Clear the display More...

async Task	FlushAsync (bool force=false)
	Flush data to the port More...

async Task	Write (byte[] value)
	Immediately update all the pins at once with the given value. More...

Protected Member Functions
override void	updateFromCurrentValue ()
	Update the LED states from the current value More...

async Task	FlushIfAutoFlushEnabled ()
	Classes extending this class should call this function after the internal pin data structure is updated. More...

Properties
double	Brightness `[get, set]`
	Gets or sets the brightness of this driver More...

bool	HasGlobalBrightnessControl `[get]`
	Gets whether this driver has global brightness More...

bool	HasIndividualBrightnessControl `[get]`
	Gets whether this driver has individual brightness control. More...

IList< Led >	Leds = new Collection<Led>() `[get]`
	Gets the LEDs belonging to this controller More...

IList< ChainableShiftRegisterOutput >	Children = new List<ChainableShiftRegisterOutput>() `[get, set]`

byte []	CurrentValue `[get, protected set]`
	The current value of the port More...

bool	AutoFlush = true `[get, set]`
	Whether or not written data should automatically be flushed to the controller More...

IFlushable	Parent `[get, protected set]`
	The parent shift register (if not null) this device is attached to More...

Detailed Description

Supports generic 8-bit or 16-bit LED shift register drivers, such as the STP16CPC26, CAT4016, TLC5916, etc

This driver provides support for many common 8-channel and 16-channel LED drivers that have an active-low Output Enable (OE) pin that supports global brightness control through PWMing. The following ICs are examples of drivers that are compatible with this library:

Texas Instruments TLC591x8-channel, up to 120 mA, 20V
Texas Instruments TLC592816-channel, up to 35 mA, 17V
Texas Instruments TLC5928x16-channel, up to 45 mA, 10V
Silicon Touch (SiTI) ST2221A8-channel, up to 90 mA, 9V
Silicon Touch (SiTI) ST2221C16-channel, up to 90 mA, 9V
Macroblock MBI502x16-channel, up to 90 mA, 17V
Allegro A628216-channel, up to 50 mA, 12V
ON Semiconductor CAT401616-channel, up to 100 mA, 5.5V
ST STP16C59616-channel, up to 120 mA, 16V
ST STP16CP0516-channel, up to 100 mA, 20V
ST STP16CPC2616-channel, up to 90 mA, 20V
ISSI IS31FL372616-channel, up to 60 mA, 4V
AMS AS112316-channel, up to 40 mA, 5.5V

Note that any other 8-bit or 16-bit shift register can also be used with this library if you want an Led-based interface to the shift register. For example, the low-cost (and ubiquitous) 74HC595 is perfectly capable of driving small indicator LEDs, and the TPIC6B595 could be used with this library to drive high-voltage, high-power LEDs (or nixie tubes, etc).

This library supports three different ways of working with the OE (output enable) pin:

Unmanaged The library doesn't do anything with the OE pin. You can tie it to GND in your circuit, or control it outside the context of this library by yourself.
GPIO pin If you pass a GPIO pin to the constructor, the library will be able to globally enable/disable the display through the Brightness property. Setting a brightness of 0.5 or greater will turn on the display, otherwise, the display will be off.
PWM pin If you pass a PWM pin to the constructor, the library will be able to control the global brightness of the display. Note that CIE perceptual brightness conversion will be performed, so, i.e., setting Brightness to 0.5 will produce a result that appears half as bright as a Brightness of 1.0.

Member Enumeration Documentation

◆ LedChannelCount

enum LedChannelCount

strong

The number of channels of this shift register

Enumerator
SixteenChannel	A 16-channel LED shift register
EightChannel	An 8-channel LED shift register

Constructor & Destructor Documentation

◆ LedShiftRegister() [1/4]

LedShiftRegister	(	Spi	SpiModule,
		SpiChipSelectPin	LatchPin,
		LedChannelCount	ChannelCount = `LedChannelCount.SixteenChannel`,
		DigitalOut	OutputEnablePin = `null`,
		double	speedMhz = `6`
	)

Construct an LED shift register attached directly to a board SPI module

Parameters

SpiModule	The board's SPI module
LatchPin	The pin to use for latches
ChannelCount	Whether the driver is 16 or 8-channel
OutputEnablePin	The output enable pin, if any, to use.
speedMhz	The speed, in MHz, to use when communicating

◆ LedShiftRegister() [2/4]

LedShiftRegister	(	Spi	SpiModule,
		SpiChipSelectPin	LatchPin,
		Pwm	OutputEnablePin,
		LedChannelCount	ChannelCount = `LedChannelCount.SixteenChannel`,
		double	speedMhz = `6`
	)

Construct an LED shift register attached directly to a board SPI module

Parameters

SpiModule	The board's SPI module
LatchPin	The pin to use for latches
OutputEnablePin	The PWM pin to use, allowing controllable global brightness.
ChannelCount	The number of channels this LED shift register has
speedMhz	The speed, in MHz, to use when communicating

◆ LedShiftRegister() [3/4]

LedShiftRegister	(	ChainableShiftRegisterOutput	upstreamDevice,
		LedChannelCount	ChannelCount = `LedChannelCount.SixteenChannel`,
		DigitalOut	OutputEnablePin = `null`
	)

Construct an LED shift register attached to the output of another shift register

Parameters

upstreamDevice	The upstream device this shift register is attached to
OutputEnablePin	The digital pin to use, if any, to control the display state
ChannelCount	The number of channels this LED shift register has

◆ LedShiftRegister() [4/4]

LedShiftRegister	(	ChainableShiftRegisterOutput	upstreamDevice,
		Pwm	OutputEnablePin,
		LedChannelCount	ChannelCount = `LedChannelCount.SixteenChannel`
	)

Construct an LED shift register attached to the output of another shift register

Parameters

upstreamDevice	The upstream device this shift register is attached to
OutputEnablePin	The PWM pin to use, if any, to control the display brightness
ChannelCount	The number of channels this LED shift register has

Member Function Documentation

◆ Clear()

Task Clear ( )

Clear the display

Returns: An awaitable task that completes when finished

Implements ILedDriver.

◆ updateFromCurrentValue()

override void updateFromCurrentValue ( )

protectedvirtual

Update the LED states from the current value

Implements ChainableShiftRegisterOutput.

◆ FlushAsync()

async Task FlushAsync ( bool force = false )

inherited

Flush data to the port

Parameters

force Whether to flush all data to the port, even if it doesn't appear to have changed.

Returns: An awaitable task that completes when finished

Implements IFlushable.

◆ Write()

async Task Write ( byte [] value )

inherited

Immediately update all the pins at once with the given value.

Flush() will be implicity called.

Parameters

value A value representing the data to write to the port

Returns: An awaitable task that completes upon successfully writing the value.

◆ FlushIfAutoFlushEnabled()

async Task FlushIfAutoFlushEnabled ( )

protectedinherited

Classes extending this class should call this function after the internal pin data structure is updated.

Returns

Property Documentation

◆ Brightness

double Brightness

getset

Gets or sets the brightness of this driver

◆ HasGlobalBrightnessControl

bool HasGlobalBrightnessControl

get

Gets whether this driver has global brightness

The state of this value depends if the board was constructed with a Pwm pin or not.

◆ HasIndividualBrightnessControl

bool HasIndividualBrightnessControl

get

Gets whether this driver has individual brightness control.

This parameter will always return false.

◆ Leds

IList<Led> Leds = new Collection<Led>()

get

Gets the LEDs belonging to this controller

◆ Children

IList<ChainableShiftRegisterOutput> Children = new List<ChainableShiftRegisterOutput>()

getsetinherited

◆ CurrentValue

byte [] CurrentValue

getprotected setinherited

The current value of the port

◆ AutoFlush

bool AutoFlush = true

getsetinherited

Whether or not written data should automatically be flushed to the controller

◆ Parent

IFlushable Parent

getprotected setinherited

The parent shift register (if not null) this device is attached to

The documentation for this class was generated from the following file:

F:/Git/treehopper-sdk/NET/API/Treehopper.Libraries/Displays/LedShiftRegister.cs
