GraphicDisplay Class Reference

A class representing pixel-addressed displays More...

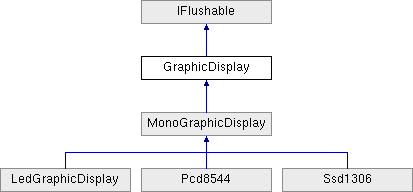

Inheritance diagram for GraphicDisplay:

Public Member Functions
	GraphicDisplay (int Width, int Height, double bytesPerPixel)
	Construct a graphic display of given width and height More...
Task	FlushAsync (bool force=false)
	Flush changed data to the port expander More...
virtual Task	Clear ()
	Clear the display More...

Protected Member Functions
abstract void	setBrightness (double brightness)
	Sets the global brightness of the graphic display More...
abstract Task	flush ()
	Flush any updates to the RawBuffer to the display More...

Properties
int	Height [get, protected set]
	The height of the display, in pixels More...
int	Width [get, protected set]
	The width of the display, in pixels. More...
byte []	RawBuffer [get, protected set]
	The raw byte buffer used by the display in its native format More...
double	Brightness [get, set]
	Gets or sets the global brightness of the display More...
bool	AutoFlush = true [get, set]
IFlushable	Parent [get]

Detailed Description

A class representing pixel-addressed displays

Constructor & Destructor Documentation

GraphicDisplay()

GraphicDisplay	(	int	Width,
		int	Height,
		double	bytesPerPixel
	)

Construct a graphic display of given width and height

Parameters

Width	The width, in pixels, of the display
Height	The height, in pixels, of the display
bytesPerPixel	The number of bytes per row (stride) of the display

Member Function Documentation

FlushAsync()

Task FlushAsync

(

bool

force = false

)

Flush changed data to the port expander

Parameters

force

whether to flush all data to the port expander, even if it doesn't appear to have been changed

Implements IFlushable.

Clear()

virtual Task Clear ( )

virtual

Clear the display

Returns

An awaitable task

Reimplemented in MonoGraphicDisplay.

setBrightness()

abstract void setBrightness ( double  brightness )

protectedpure virtual

Sets the global brightness of the graphic display

Parameters

brightness

The brightness of the display

Implemented in Ssd1306, LedGraphicDisplay, and Pcd8544.

flush()

abstract Task flush ( )

protectedpure virtual

Flush any updates to the RawBuffer to the display

Returns

An awaitable task that completes upon sending the update to the display

Internal function called by the implementation to flush the RawBuffer to the display

Returns

An awaitable task that completes upon success

Implemented in Ssd1306, LedGraphicDisplay, and Pcd8544.

Property Documentation

Height

int Height

getprotected set

The height of the display, in pixels

Width

int Width

getprotected set

The width of the display, in pixels.

RawBuffer

byte [] RawBuffer

getprotected set

The raw byte buffer used by the display in its native format

The format of this raw buffer depends on the particular implementation of this class

Brightness

double Brightness

getset

Gets or sets the global brightness of the display

AutoFlush

bool AutoFlush = true

getset

Parent

IFlushable Parent

get

---

The documentation for this class was generated from the following file:

• F:/Git/treehopper-sdk/NET/API/Treehopper.Libraries/Displays/GraphicDisplay.cs
