MonoGraphicDisplay Class Reference

A class representing pixel-addressed displays that can control the pixel's on/off state only. More...

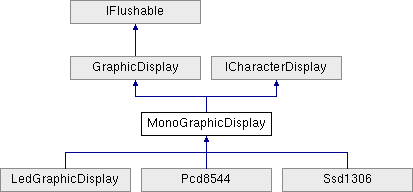

Inheritance diagram for MonoGraphicDisplay:

Public Member Functions
	MonoGraphicDisplay (int Width, int Height)
	Construct a graphic display of given width and height More...
async Task	SetCursorPosition (int left, int top)
	Set left/right cursor position More...
void	SetPixel (int row, int column, bool state)
	Set a pixel's state. More...
async Task	Write (dynamic value)
	Display an alphanumeric value using a 5x7 font at the given character column and row More...
async Task	WriteLine (dynamic value)
	Write a line of text, advancing the cursor to the next line More...
override Task	Clear ()
	Clear the display More...
Task	FlushAsync (bool force=false)
	Flush changed data to the port expander More...

Protected Member Functions
abstract void	setBrightness (double brightness)
	Sets the global brightness of the graphic display More...
abstract Task	flush ()
	Flush any updates to the RawBuffer to the display More...

Properties
bool [,]	PixelBuffer [get, set]
	The raw byte buffer used by the display in its native format More...
int	Columns [get]
int	Rows [get]
int	CursorLeft [get, set]
int	CursorTop [get, set]
int	Height [get, protected set]
	The height of the display, in pixels More...
int	Width [get, protected set]
	The width of the display, in pixels. More...
byte []	RawBuffer [get, protected set]
	The raw byte buffer used by the display in its native format More...
double	Brightness [get, set]
	Gets or sets the global brightness of the display More...
bool	AutoFlush = true [get, set]
IFlushable	Parent [get]

Detailed Description

A class representing pixel-addressed displays that can control the pixel's on/off state only.

Constructor & Destructor Documentation

MonoGraphicDisplay()

MonoGraphicDisplay	(	int	Width,
		int	Height
	)

Construct a graphic display of given width and height

Parameters

Width	The width, in pixels, of the display
Height	The height, in pixels, of the display

Member Function Documentation

SetCursorPosition()

async Task SetCursorPosition	(	int	left,
		int	top
	)

Set left/right cursor position

Parameters

left	The left position
top	The top position

Returns

An awaitable task that completes once the cursor is updated

Implements ICharacterDisplay.

SetPixel()

void SetPixel	(	int	row,
		int	column,
		bool	state
	)

Set a pixel's state.

You must explicitly flush to the display to write out the changes.

Parameters

row	The row of the pixel
column	The column of the pixel
state	Whether the pixel should be on or off

Write()

async Task Write

(

dynamic

value

)

Display an alphanumeric value using a 5x7 font at the given character column and row

Parameters

value

The alphanumeric value to use

Returns

An awaitable task that will finish upon completion

This method is used for quickly rendering fixed-size sharp, monospaced text on a monochrome graphic display, allowing these displays to be dropped into a project in place of a (usually more costly and older) character display. If you want control over the size and font family used to display the text, use the extremely extensible System.Drawing.Graphics class.

If you want control over

Implements ICharacterDisplay.

WriteLine()

async Task WriteLine

(

dynamic

value

)

Write a line of text, advancing the cursor to the next line

Parameters

value

the text to write

Returns

An awaitable task that completes when finished

Implements ICharacterDisplay.

Clear()

override Task Clear ( )

virtual

Clear the display

Returns

An awaitable task

Reimplemented from GraphicDisplay.

FlushAsync()

Task FlushAsync ( bool  force = false )

inherited

Flush changed data to the port expander

Parameters

force

whether to flush all data to the port expander, even if it doesn't appear to have been changed

Implements IFlushable.

setBrightness()

abstract void setBrightness ( double  brightness )

protectedpure virtualinherited

Sets the global brightness of the graphic display

Parameters

brightness

The brightness of the display

Implemented in Ssd1306, LedGraphicDisplay, and Pcd8544.

flush()

abstract Task flush ( )

protectedpure virtualinherited

Flush any updates to the RawBuffer to the display

Returns

An awaitable task that completes upon sending the update to the display

Internal function called by the implementation to flush the RawBuffer to the display

Returns

An awaitable task that completes upon success

Implemented in Ssd1306, LedGraphicDisplay, and Pcd8544.

Property Documentation

PixelBuffer

bool [,] PixelBuffer

getset

The raw byte buffer used by the display in its native format

The format of this raw buffer depends on the particular implementation of this class

Columns

int Columns

get

Rows

int Rows

get

CursorLeft

int CursorLeft

getset

CursorTop

int CursorTop

getset

Height

int Height

getprotected setinherited

The height of the display, in pixels

Width

int Width

getprotected setinherited

The width of the display, in pixels.

RawBuffer

byte [] RawBuffer

getprotected setinherited

The raw byte buffer used by the display in its native format

The format of this raw buffer depends on the particular implementation of this class

Brightness

double Brightness

getsetinherited

Gets or sets the global brightness of the display

AutoFlush

bool AutoFlush = true

getsetinherited

Parent

IFlushable Parent

getinherited

---

The documentation for this class was generated from the following file:

• F:/Git/treehopper-sdk/NET/API/Treehopper.Libraries/Displays/MonoGraphicDisplay.cs
