LedGraphicDisplay Class Reference

A mono (on/off) graphic display comprised of LEDs More...

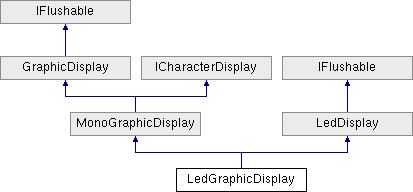

Inheritance diagram for LedGraphicDisplay:

Public Member Functions
	LedGraphicDisplay (IList< Led > leds, int width, int height)
	Construct a new LED graphic display More...
void	WriteLeds ()
async Task	SetCursorPosition (int left, int top)
	Set left/right cursor position More...
void	SetPixel (int row, int column, bool state)
	Set a pixel's state. More...
async Task	Write (dynamic value)
	Display an alphanumeric value using a 5x7 font at the given character column and row More...
async Task	WriteLine (dynamic value)
	Write a line of text, advancing the cursor to the next line More...
override Task	Clear ()
	Clear the display More...
Task	FlushAsync (bool force=false)
	Flush changed data to the port expander More...

Protected Member Functions
override Task	flush ()
	Write out all the pixels' values to the corresponding LEDs More...
override void	setBrightness (double brightness)
	Set the global brightness of the display More...

Properties
LedCollection	Leds [get]
	The collection of LEDs to use, ordered by column and in ascending row More...
bool [,]	PixelBuffer [get, set]
	The raw byte buffer used by the display in its native format More...
int	Columns [get]
int	Rows [get]
int	CursorLeft [get, set]
int	CursorTop [get, set]
int	Height [get, protected set]
	The height of the display, in pixels More...
int	Width [get, protected set]
	The width of the display, in pixels. More...
byte []	RawBuffer [get, protected set]
	The raw byte buffer used by the display in its native format More...
double	Brightness [get, set]
	Gets or sets the global brightness of the display More...
bool	AutoFlush = true [get, set]
IFlushable	Parent [get]

Detailed Description

A mono (on/off) graphic display comprised of LEDs

Constructor & Destructor Documentation

LedGraphicDisplay()

LedGraphicDisplay	(	IList< Led >	leds,
		int	width,
		int	height
	)

Construct a new LED graphic display

Parameters

leds	The LEDs to use with this display
width	The number of LEDs wide this display is
height	THe number of LEDs tall this display is

Member Function Documentation

WriteLeds()

void WriteLeds

(

)

flush()

override Task flush ( )

protectedvirtual

Write out all the pixels' values to the corresponding LEDs

Returns

An awaitable task

Implements GraphicDisplay.

setBrightness()

override void setBrightness ( double  brightness )

protectedvirtual

Set the global brightness of the display

Parameters

brightness

The brightness, from 0-1, to set

Note that this function will write out this brightness setting to all underlying controllers; if the controller doesn't support brightness control, this setting is ignored.

Implements GraphicDisplay.

SetCursorPosition()

async Task SetCursorPosition ( int  left, int  top  )

inherited

Set left/right cursor position

Parameters

left	The left position
top	The top position

Returns

An awaitable task that completes once the cursor is updated

Implements ICharacterDisplay.

SetPixel()

void SetPixel ( int  row, int  column, bool  state  )

inherited

Set a pixel's state.

You must explicitly flush to the display to write out the changes.

Parameters

row	The row of the pixel
column	The column of the pixel
state	Whether the pixel should be on or off

Write()

async Task Write ( dynamic  value )

inherited

Display an alphanumeric value using a 5x7 font at the given character column and row

Parameters

value

The alphanumeric value to use

Returns

An awaitable task that will finish upon completion

This method is used for quickly rendering fixed-size sharp, monospaced text on a monochrome graphic display, allowing these displays to be dropped into a project in place of a (usually more costly and older) character display. If you want control over the size and font family used to display the text, use the extremely extensible System.Drawing.Graphics class.

If you want control over

Implements ICharacterDisplay.

WriteLine()

async Task WriteLine ( dynamic  value )

inherited

Write a line of text, advancing the cursor to the next line

Parameters

value

the text to write

Returns

An awaitable task that completes when finished

Implements ICharacterDisplay.

Clear()

override Task Clear ( )

virtualinherited

Clear the display

Returns

An awaitable task

Reimplemented from GraphicDisplay.

FlushAsync()

Task FlushAsync ( bool  force = false )

inherited

Flush changed data to the port expander

Parameters

force

whether to flush all data to the port expander, even if it doesn't appear to have been changed

Implements IFlushable.

Property Documentation

Leds

LedCollection Leds

get

The collection of LEDs to use, ordered by column and in ascending row

PixelBuffer

bool [,] PixelBuffer

getsetinherited

The raw byte buffer used by the display in its native format

The format of this raw buffer depends on the particular implementation of this class

Columns

int Columns

getinherited

Rows

int Rows

getinherited

CursorLeft

int CursorLeft

getsetinherited

CursorTop

int CursorTop

getsetinherited

Height

int Height

getprotected setinherited

The height of the display, in pixels

Width

int Width

getprotected setinherited

The width of the display, in pixels.

RawBuffer

byte [] RawBuffer

getprotected setinherited

The raw byte buffer used by the display in its native format

The format of this raw buffer depends on the particular implementation of this class

Brightness

double Brightness

getsetinherited

Gets or sets the global brightness of the display

AutoFlush

bool AutoFlush = true

getsetinherited

Parent

IFlushable Parent

getinherited

---

The documentation for this class was generated from the following file:

• F:/Git/treehopper-sdk/NET/API/Treehopper.Libraries/Displays/LedGraphicDisplay.cs
