LedDriver Class Reference

Base class that all LED drivers inherit from. More...

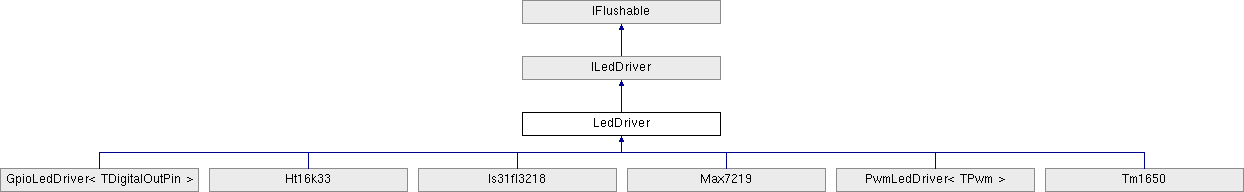

Inheritance diagram for LedDriver:

Public Member Functions
	LedDriver (int numLeds, bool HasGlobalBrightnessControl, bool HasIndividualBrightnessControl)
	Construct an LedDriver More...
async Task	Clear ()
	Clear the display More...
abstract Task	FlushAsync (bool force=false)
	Write out the current values of the LEDs immediately. More...

Protected Attributes
double	brightness
	The internally-referenced global brightness of the LED driver More...

Properties
bool	AutoFlush = true [get, set]
	Gets or sets whether the display should auto-flush whenever an LED state is changed More...
bool	HasGlobalBrightnessControl [get, protected set]
	Gets or sets whether this controller supports global brightness control. More...
bool	HasIndividualBrightnessControl [get]
	Gets or sets whether this controller's LEDs have individual brightness control (through PWM or otherwise). More...
double	Brightness [get, set]
	The global brightness, from 0.0-1.0, of the LEDs attached to this driver More...
IList< Led >	Leds = new Collection<Led>() [get, set]
	The collection of LEDs that belong to this driver. More...
IFlushable	Parent [get, protected set]
	Gets the parent device of this LED driver More...

Detailed Description

Base class that all LED drivers inherit from.

Constructor & Destructor Documentation

LedDriver()

LedDriver	(	int	numLeds,
		bool	HasGlobalBrightnessControl,
		bool	HasIndividualBrightnessControl
	)

Construct an LedDriver

Parameters

numLeds	The number of LEDs to construct
HasGlobalBrightnessControl	Whether the controller can globally adjust the LED brightness.
HasIndividualBrightnessControl	Whether the controller has individual LED brightness control

Member Function Documentation

Clear()

async Task Clear

(

)

Clear the display

Returns

An awaitable task that completes when the display is cleared

Implements ILedDriver.

FlushAsync()

abstract Task FlushAsync ( bool  force = false )

pure virtual

Write out the current values of the LEDs immediately.

Parameters

force

Whether to write out all values, even if they appear unchanged.

Returns

An awaitable Task

Implements IFlushable.

Implemented in Max7219, Tm1650, Ht16k33, Is31fl3218, GpioLedDriver< TDigitalOutPin >, and PwmLedDriver< TPwm >.

Member Data Documentation

brightness

double brightness

protected

The internally-referenced global brightness of the LED driver

Property Documentation

AutoFlush

bool AutoFlush = true

getset

Gets or sets whether the display should auto-flush whenever an LED state is changed

HasGlobalBrightnessControl

bool HasGlobalBrightnessControl

getprotected set

Gets or sets whether this controller supports global brightness control.

HasIndividualBrightnessControl

bool HasIndividualBrightnessControl

get

Gets or sets whether this controller's LEDs have individual brightness control (through PWM or otherwise).

Brightness

double Brightness

getset

The global brightness, from 0.0-1.0, of the LEDs attached to this driver

Leds

IList<Led> Leds = new Collection<Led>()

getset

The collection of LEDs that belong to this driver.

Parent

IFlushable Parent

getprotected set

Gets the parent device of this LED driver

---

The documentation for this class was generated from the following file:

• F:/Git/treehopper-sdk/NET/API/Treehopper.Libraries/Displays/LedDriver.cs
