A GPIO/Analog pin on the board. More...

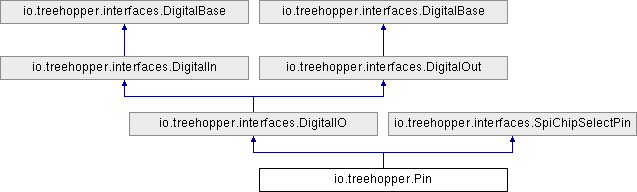

Inheritance diagram for io.treehopper.Pin:

Public Member Functions
int	getPinNumber ()
	Gets the pin number of this pin. More...

Spi	getSpiModule ()
	Gets the SPI module that can use this pin as an SpiChipSelectPin. More...

TreehopperUsb	getBoard ()
	Get the board this pin belongs to. More...

PinMode	getMode ()
	Get the current PinMode of the pin. More...

void	setMode (PinMode value)
	Set this pin's mode. More...

void	addDigitalInValueChangedEventHandler (DigitalInValueChangedEventHandler handler)
	Add a DigitalInValueCHangedEventHandler. More...

void	removeDigitalInValueChangedEventHandler (DigitalInValueChangedEventHandler handler)
	Remove a DigitalInValueCHangedEventHandler. More...

boolean	getDigitalValue ()
	Gets the current digital value of the pin. More...

void	setDigitalValue (boolean value)
	Sets the digital value of this pin. More...

void	toggleOutput ()
	Toggles the output of the pin. More...

void	makeDigitalPushPullOutput ()
	Make this pin a digital push-pull output. More...

void	makeDigitalIn ()
	Make this pin a digital input. More...

void	addAdcValueChangedEventHandler (AdcValueChangedEventHandler handler)
	Add an AdcValueChangedEventHandler. More...

void	removeAdcValueChangedEventHandler (AdcValueChangedEventHandler handler)
	Remove an AdcValueChangedEventHandler. More...

void	addAnalogValueChangedEventHandler (AnalogValueChangedEventHandler handler)
	Add an AnalogValueChangedEventHandler. More...

void	removeAnalogValueChangedEventHandler (AnalogValueChangedEventHandler handler)
	Remove an AnalogValueChangedEventHandler. More...

void	addAnalogVoltageChangedEventHandler (AnalogVoltageChangedEventHandler handler)
	Add an AnalogVoltageChangedEventHandler. More...

void	removeAnalogVoltageChangedEventHandler (AnalogVoltageChangedEventHandler handler)
	Remove an AnalogVoltageChangedEventHandler. More...

int	getAdcValueChangedThreshold ()
	Gets the threshold the ADC value must change by for the event to fire. More...

void	setAdcValueChangedThreshold (int adcValueChangedThreshold)
	Sets the threshold the ADC value must change by for the event to fire. More...

double	getAnalogValueChangedThreshold ()
	Gets the threshold the analog value must change by for the event to fire. More...

void	setAnalogValueChangedThreshold (double analogValueChangedThreshold)
	Sets the threshold the ADC value must change by for the event to fire. More...

double	getAnalogVoltageChangedThreshold ()
	Gets the threshold the analog voltage must change by for the event to fire. More...

void	setAnalogVoltageChangedThreshold (double analogVoltageChangedThreshold)
	Sets the threshold the analog voltage must change by for the event to fire. More...

int	getAdcValue ()
	Get the ADC value, 0-4091, of the pin. More...

double	getAnalogVoltage ()
	Gets the analog voltage (0-3.3) of this pin. More...

double	getAnalogValue ()
	Gets the analog value (from 0-1) of this pin. More...

AdcReferenceLevel	getReferenceLevel ()
	Gets the AdcReferenceLevel of this pin. More...

void	setReferenceLevel (AdcReferenceLevel referenceLevel)
	Set the AdcReferenceLevel of this pin. More...

Public Attributes
final SoftPwm	softPwm

Detailed Description

A GPIO/Analog pin on the board.

Member Function Documentation

◆ addAdcValueChangedEventHandler()

void io.treehopper.Pin.addAdcValueChangedEventHandler ( AdcValueChangedEventHandler handler )

Add an AdcValueChangedEventHandler.

Parameters

handler the AdcValueChangedEventHandler to add

◆ addAnalogValueChangedEventHandler()

void io.treehopper.Pin.addAnalogValueChangedEventHandler ( AnalogValueChangedEventHandler handler )

Add an AnalogValueChangedEventHandler.

Parameters

handler the AnalogValueChangedEventHandler to add

◆ addAnalogVoltageChangedEventHandler()

void io.treehopper.Pin.addAnalogVoltageChangedEventHandler ( AnalogVoltageChangedEventHandler handler )

Add an AnalogVoltageChangedEventHandler.

Parameters

handler the AnalogVoltageChangedEventHandler to add

◆ addDigitalInValueChangedEventHandler()

void io.treehopper.Pin.addDigitalInValueChangedEventHandler ( DigitalInValueChangedEventHandler handler )

Add a DigitalInValueCHangedEventHandler.

Parameters

handler the handler to add

Implements io.treehopper.interfaces.DigitalIn.

◆ getAdcValue()

int io.treehopper.Pin.getAdcValue ( )

Get the ADC value, 0-4091, of the pin.

Returns: the ADC value of the pin

◆ getAdcValueChangedThreshold()

int io.treehopper.Pin.getAdcValueChangedThreshold ( )

Gets the threshold the ADC value must change by for the event to fire.

Returns: the ADC threshold value

◆ getAnalogValue()

double io.treehopper.Pin.getAnalogValue ( )

Gets the analog value (from 0-1) of this pin.

Returns: the last-read analog value of the pin

◆ getAnalogValueChangedThreshold()

double io.treehopper.Pin.getAnalogValueChangedThreshold ( )

Gets the threshold the analog value must change by for the event to fire.

Returns: the analog threshold value

◆ getAnalogVoltage()

double io.treehopper.Pin.getAnalogVoltage ( )

Gets the analog voltage (0-3.3) of this pin.

Returns: the analog voltage of the pin

◆ getAnalogVoltageChangedThreshold()

double io.treehopper.Pin.getAnalogVoltageChangedThreshold ( )

Gets the threshold the analog voltage must change by for the event to fire.

Returns: the analog voltage threshold value

◆ getBoard()

TreehopperUsb io.treehopper.Pin.getBoard ( )

Get the board this pin belongs to.

Returns: the board this pin belongs to

◆ getDigitalValue()

boolean io.treehopper.Pin.getDigitalValue ( )

Gets the current digital value of the pin.

Returns: the digital value of the pin

If the pin is an input, this function returns the last-read value of the pin. If the pin is an output, this function returns the value this pin is currently outputting.

Implements io.treehopper.interfaces.DigitalBase.

◆ getMode()

PinMode io.treehopper.Pin.getMode ( )

Get the current PinMode of the pin.

Returns: the PinMode of the pin

◆ getPinNumber()

int io.treehopper.Pin.getPinNumber ( )

Gets the pin number of this pin.

Returns: the pin number (starting at 0)

Implements io.treehopper.interfaces.SpiChipSelectPin.

◆ getReferenceLevel()

AdcReferenceLevel io.treehopper.Pin.getReferenceLevel ( )

Gets the AdcReferenceLevel of this pin.

Returns: the ADC reference level of the pin

◆ getSpiModule()

Spi io.treehopper.Pin.getSpiModule ( )

Gets the SPI module that can use this pin as an SpiChipSelectPin.

Returns: The supported SPI module

Implements io.treehopper.interfaces.SpiChipSelectPin.

◆ makeDigitalIn()

void io.treehopper.Pin.makeDigitalIn ( )

Make this pin a digital input.

Implements io.treehopper.interfaces.DigitalIn.

◆ makeDigitalPushPullOutput()

void io.treehopper.Pin.makeDigitalPushPullOutput ( )

Make this pin a digital push-pull output.

Implements io.treehopper.interfaces.DigitalOut.

◆ removeAdcValueChangedEventHandler()

void io.treehopper.Pin.removeAdcValueChangedEventHandler ( AdcValueChangedEventHandler handler )

Remove an AdcValueChangedEventHandler.

Parameters

handler the AdcValueChangedEventHandler to remove

◆ removeAnalogValueChangedEventHandler()

void io.treehopper.Pin.removeAnalogValueChangedEventHandler ( AnalogValueChangedEventHandler handler )

Remove an AnalogValueChangedEventHandler.

Parameters

handler the AnalogValueChangedEventHandler to remove

◆ removeAnalogVoltageChangedEventHandler()

void io.treehopper.Pin.removeAnalogVoltageChangedEventHandler ( AnalogVoltageChangedEventHandler handler )

Remove an AnalogVoltageChangedEventHandler.

Parameters

handler the AnalogVoltageChangedEventHandler to remove

◆ removeDigitalInValueChangedEventHandler()

void io.treehopper.Pin.removeDigitalInValueChangedEventHandler ( DigitalInValueChangedEventHandler handler )

Remove a DigitalInValueCHangedEventHandler.

Parameters

handler the handler to remove

Implements io.treehopper.interfaces.DigitalIn.

◆ setAdcValueChangedThreshold()

void io.treehopper.Pin.setAdcValueChangedThreshold ( int adcValueChangedThreshold )

Sets the threshold the ADC value must change by for the event to fire.

Parameters

adcValueChangedThreshold the ADC threshold value

◆ setAnalogValueChangedThreshold()

void io.treehopper.Pin.setAnalogValueChangedThreshold ( double analogValueChangedThreshold )

Sets the threshold the ADC value must change by for the event to fire.

Parameters

analogValueChangedThreshold the ADC threshold value

◆ setAnalogVoltageChangedThreshold()

void io.treehopper.Pin.setAnalogVoltageChangedThreshold ( double analogVoltageChangedThreshold )

Sets the threshold the analog voltage must change by for the event to fire.

Parameters

analogVoltageChangedThreshold the analog voltage threshold value

◆ setDigitalValue()

void io.treehopper.Pin.setDigitalValue ( boolean value )

Sets the digital value of this pin.

Parameters

value the digital value

Implements io.treehopper.interfaces.DigitalOut.

◆ setMode()

void io.treehopper.Pin.setMode ( PinMode value )

Set this pin's mode.

Parameters

value the mode of the pin

◆ setReferenceLevel()

void io.treehopper.Pin.setReferenceLevel ( AdcReferenceLevel referenceLevel )

Set the AdcReferenceLevel of this pin.

Parameters

referenceLevel the ADC reference level to use

◆ toggleOutput()

void io.treehopper.Pin.toggleOutput ( )

Toggles the output of the pin.

Just like setDigitalValue(), this function will turn the pin into a push-pull output if it is not already a push-pull or open-drain output.

Implements io.treehopper.interfaces.DigitalOut.

Member Data Documentation

◆ softPwm

final SoftPwm io.treehopper.Pin.softPwm

The documentation for this class was generated from the following file:

F:/Git/treehopper-sdk/Java/api/treehopper/src/main/java/io/treehopper/Pin.java
