io.treehopper.HardwareI2c Class Reference

Built-in I2C module. More...

Inheritance diagram for io.treehopper.HardwareI2c:
io.treehopper.interfaces.I2c

Classes

enum  I2cTransferError


Public Member Functions

boolean isEnabled ()
 Gets whether the I2c peripheral is enabled. More...

void setEnabled (boolean enabled)
 Sets whether the I2c peripheral is enabled. More...

double getSpeed ()
 Gets the I2c peripheral speed. More...

void setSpeed (double speed)
 Sets the I2c peripheral speed. More...

byte [] sendReceive (byte address, byte[] dataToWrite, int numBytesToRead)
 send and receive data with this I2c module More...


Detailed Description

Built-in I2C module.

Quick Start

Once you've connected to your board, you can enable the I2C peripheral by settings the enabled() property to true, and then send/receive data.

auto board = ConnectionService::instance().getFirstDevice();
board.connect();
board.i2c.enabled(true);
byte writeData = 0x31; // the register to read from
byte address = 0x17; // 7-bit address
byte[] readData = board.i2c.sendReceive(address, new byte[]{ writeData }, 2)

If you want to change the communication rate from the default 100 kHz, consult the speed() property.

Unless you need to perform raw I2C transactions, we recommend using SMBusDevice, which provides useful methods for reading and writing I2C peripheral registers. Almost all I2C drivers in Treehopper::Libraries use it.

Speaking of which, before writing a driver yourself, check to make it's not already in Treehopper::Libraries. You may save yourself some time!

Background

I2C (I2C, or IIC) is a low-speed synchronous serial protocol that allows up to 127 ICs to communicate with a master over a shared two-wire open-drain bus. It has largely replaced Spi for many sensors and peripherals.

The Treehopper::Libraries distribution for your language/platform has support for many different peripherals you can use with the I2C peripheral; see the Libraries documentation for more details.

Here's an example of a typical I2C arrangement:

i2c-overview.svg
Typical I2C interfacing with Treehopper

Addressing

Each I2C peripheral on the bus must have a unique 7-bit address. This is almost always specified in the datasheet of the peripheral, and might also include the states of one or more address pins — input pins on the chip that can either be permanently tied low or high to control the address. This allows multiple instances of the same IC to be placed on the same bus, so long as the address pins are tied in a unique combination.

SMBus

System Management Bus (SMBus) is a protocol definition that sits on top of I2C, and is implemented by almost all modern I2C peripherals. Peripherals expose all functionality through registers (which are similar to the registers of an MCU). SMBus uses an 8-bit value to specify the register, thus supporting 255 addresses. By manipulating these registers, the peripheral can be commanded to perform its functions, and data can also be read back from it.

Implementation

Treehopper implements an SMBus-compliant I2C master role that is compatible with almost all I2C peripherals on the market. Treehopper does not support multi-master scenarios or I2C slave functionality.

SendReceiveAsync Function

It would be impractical for Treehopper to directly expose low-level I2C functions (start bit, stop bit, ack/nack); instead, Treehopper's I2C module supports a single high-level sendReceive() function that is used to exchange data.

This function can be used to either write data to the device (if numBytesToRead is 0), read data from the device (if writeData is null), or both write data to the device and then read from it.

This function is well-suited to reading and writing registers on an I2C SMBus-compatible peripheral.

For example, to read a 16-bit register at address 0x31 from an I2C device with address 0x17, one can call:

byte writeData = 0x31; // the register to read from
byte address = 0x17; // 7-bit address
byte[] readData = board.i2c.sendReceive(address, new byte[]{ writeData }, 2)

This translates to this transaction:

i2c-function-mapping.svg
ReadWrite function maps to a standard SMBus-compatible transaction

Note that Treehopper correctly implements the Restart condition when it requests data from the device after writing writeData to it. While unusual, if your peripheral required a STOP condition to be sent before requesting data from it, simply break up the transaction into two sendReceive() calls:

byte writeData = 0x31; // the register to read from
byte address = 0x17; // 7-bit address
board.i2c.sendReceive(address, new byte[]{ writeData }, 0)
byte[] readData = board.i2c.sendReceive(address, null, 2)

Errors

Treehopper correctly detects and forwards I2C errors to your application.

Frequent Issues

It can be difficult to diagnose I2C problems without a logic analyzer, but there are several common issues that arise that can be easily diagnosed without specialized tools.

Pull-Up Resistors

Treehopper does not have on-board I2C pull-up resistors on the SCL and SDA pins, as this would interfere with analog inputs on these pins. There are methodologies for selecting these resistors, but there's quite a bit of latitude – we've found 4.7-10k resistors seem to work almost all the time, with normal numbers of slaves (say, fewer than 10) on a bus. If you have fewer slaves, you may need to decrease these resistor values.

Note that many off-the-shelf modules you might buy from Adafruit, SparkFun, Amazon or an eBay vendor probably already have I2C pull-up resistors on them. It is usually not an issue if you have more than one of these modules on the bus, but depending on the pull-up resistor values use, the ICs may struggle to drive the bus with a large number of pull-up resistors on it.

Addressing

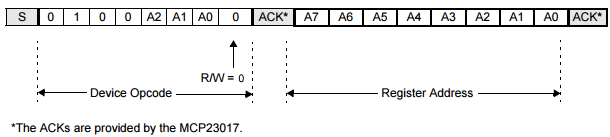

At the protocol level, the device's 7-bit address is shifted to the left by 1, leaving the least-significant bit to be used to indicate a 1 for Input (read), and a 0 for Output (write) transactions. The Treehopper API (and all Treehopper libraries) use this 7-bit address. Unfortunately, the datasheets for some peripherals specify the peripheral's address in this shifted 8-bit format. To add further confusion, many peripherals have external address pins that can be tied high or low to set or clear the respective address bits. For example, Figure 1-4 from the MCP23017 datasheet gives

MCP23017 address

To determine what address to use with Treehopper, ignore the R/W bit completely, thus the 7-bit address is 0b0100(a2)(a1)(a0). If we were to tie A0 high while leaving A1 and A2 low, the address would be 0b0100001, which is 0x21.

Address Conflicts

With only 127 different I2C addresses available, it's actually quite common for ICs to have conflicting addresses. And some ICs — especially low pin-count sensors — lack external address pins that can be used to set the address. While many of these devices have a programmable address, this is an annoying chicken-and-the-egg problem that requires you to individually program the addresses of the ICs before they're installed together on your board.

Some language APIs have I2cMux-inherited components in the Treehopper.Libraries.Interface.Mux namespace that might be useful for handling address conflicts. For example, the Treehopper.Libraries.Interface.Mux.I2cMux class allows you to use low-cost analog muxes (such as jellybean 405x-type parts that are often just a few cents each) as a transparent mux to share one Treehopper I2C bus with multiple slaves with conflicting addresses.

Logic-Level Conversion

Treehopper is a 3.3V device, which almost all modern peripheral ICs use as their recommended operating (or at least I/O) voltage. Furthermore, because I2C is an open-drain interface, logic-level conversion is usually not necessary when dealing with peripherals that operate anywhere between 2.8 and 5V. This range covers the vast majority of ICs in use today.

If your 5V device has TTL-compatible logic (i.e., a VIH of 2V), no logic-level conversion is needed – you can simply wire these devices directly to Treehopper's SCL and SDA pins, making sure to pull them up to 3.3V. Since TTL specifies a minimum high voltage of 2V, the 3.3V signals generated by the pull-ups is sufficient. If the 5V device has a CMOS-compatible input, you should consider pulling up the SCL and SDA lines to 5V instead.

On the opposite end of the spectrum, if you're dealing with 2.8V devices, make sure to pull up the bus to 2.8 — not 3.3 — volts. If you have lower-voltage devices, you'll need to build or buy a bidirectional logic level converter (which can be as simple as a transistor and some pull-ups).

Member Function Documentation

◆ getSpeed()

double io.treehopper.HardwareI2c.getSpeed ( )

Gets the I2c peripheral speed.

Returns
the I2c speed, in kHz

Implements io.treehopper.interfaces.I2c.

◆ isEnabled()

boolean io.treehopper.HardwareI2c.isEnabled ( )

Gets whether the I2c peripheral is enabled.

Returns

Implements io.treehopper.interfaces.I2c.

◆ sendReceive()

byte [] io.treehopper.HardwareI2c.sendReceive ( byte  address,
byte []  dataToWrite,
int  numBytesToRead
)

send and receive data with this I2c module

Parameters
addressthe slave address to send/receive with
dataToWritethe data to write
numBytesToReadthe number of bytes to read
Returns
the data received

Implements io.treehopper.interfaces.I2c.

◆ setEnabled()

void io.treehopper.HardwareI2c.setEnabled ( boolean  enabled)

Sets whether the I2c peripheral is enabled.

Parameters
enabled

Implements io.treehopper.interfaces.I2c.

◆ setSpeed()

void io.treehopper.HardwareI2c.setSpeed ( double  speed)

Sets the I2c peripheral speed.

Parameters
speedthe I2c speed, in kHz

Implements io.treehopper.interfaces.I2c.
