Treehopper C++ API
Pin Class Reference

Built-in I/O pins. More...

#include <Pin.h>

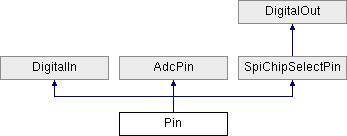

Inheritance diagram for Pin:
DigitalIn AdcPin SpiChipSelectPin DigitalOut

Public Member Functions

 Pin (TreehopperUsb *board, uint8_t pinNumber)
 Construct a new pin attached to a given board. More...

void mode (PinMode value)
 Set the PinMode of the pin. More...

PinMode mode ()
 Get the current PinMode of the pin. More...

void makePushPullOutput () override
 Make the pin a PinMode::PushPullOutput. More...

void makeDigitalInput () override
 Make the pin a PinMode::DigitalInput. More...

void makeAnalogInput ()
 Make the pin a PinMode::AnalogInput. More...

void digitalValue (bool val) override
 Set the digital value of the pin. More...

bool digitalValue () override
 Get the digital value of the pin. More...

void toggleOutput ()
 Toggle the output value of the pin. More...

void referenceLevel (AdcReferenceLevel value)
 Set the AdcReferenceLevel of the pin. More...

AdcReferenceLevel referenceLevel ()
 Get the AdcReferenceLevel of the pin. More...

double analogValue ()
 Get the analog value (0-1) of the pin. More...

double analogVoltage ()
 Get the voltage of the pin. More...

int adcValue ()
 Get the ADC value (0-4095) of the pin. More...


Public Attributes

Event< Pin, AnalogValueChangedEventArgsanalogValueChanged
 Fires when the analog value (0.0-1.0) changes. More...

Event< Pin, AnalogVoltageChangedEventArgsanalogVoltageChanged
 Fires when the analog voltage (0.0-3.6) changes. More...

Event< Pin, AdcValueChangedEventArgsadcValueChanged
 Fires when the ADC value (0-4091) changes. More...

Event< DigitalIn, PinChangedEventArgsdigitalValueChanged
 Fires whenever the digital input changes. More...

int pinNumber
 Gets the pin number of the pin. More...

SpispiModule
 Gets the SPI module this pin can be used with. More...


Friends

class TreehopperUsb


Detailed Description

Quick guide

Once you have connected to a TreehopperUsb board, you can access pins through the pins collection on the board.

You can manipulate pins directly:

board.connect();
board.pins[3].mode(PinMode::PushPullOutout);
board.pins[3].digitalValue(true);

Or create reference variables:

board.connect();
Pin redLed = board.pins[7];
redLed.digitalValue(false);

You can choose whether a pin should be a digital input, digital output, analog input, or soft-PWM output by calling the pin's mode() property to one of the values in PinMode.

You can set or retrieve the digital value of a pin by accessing the digitalValue() property. Note that setting this property — even if the pin is an input — will implicitly force it to be an output.

If the pin is set as an analog input, you can access its data through any of the following properties:

  • analogValue: retrieve a normalized (0.0 - 1.0) pin value
  • analogVoltage: retrieve the voltage (0.0 - 3.3) on the pin
  • adcValue: retrieve the raw ADC value (0 - 4095) of the pin

More information

This section dives into more details and electrical characteristics about Treehopper's pins.

Pin mode

You can choose whether a pin should be a digital input, output, or analog input by setting the pin's mode() property.

Digital outputs

All pins on Treehopper support both push-pull and open-drain outputs. Writing a true or false to the pin's digital value will flush that value to the pin.

  • Push-Pull: Push-pull is the most commonly used output mode; when a pin is set to true, Treehopper will attempt to drive the pin to logic HIGH (3.3V) — when a pin is set to false, Treehopper will attempt to drive the pin to logic LOW (0V — ground).
  • Open-Drain: Open-drain outputs can only drive a strong logic LOW (0V); in the HIGH state, the pin is weakly pulled high.

Output current limitations

Treehopper's output impedance varies, but is roughly 100 ohm source and 50 ohm sink when supplying weaker loads, but increases as the load increases. In the worst-case scenario (when short-circuited), Treehopper can source approximately 20 mA of current, and sink approximately 40 mA of current. The pin's drivers are rated for a maximum of 100 mA of output current, so you cannot damage the board by short-circuiting its output to ground or 3.3V.

While this is plenty of current for peripheral ICs and small indicator LEDs, do not expect to drive large arrays of LEDs, or low-impedance loads like motors, solenoids, or speakers directly from Treehopper's pins. There are a wide variety of peripherals in the Treehopper::Libraries package for your language API that can be used for interfacing with these peripherals.

Warning
To avoid damaging the device permanently, do not source or sink more than 400 mA of combined current out of the pins on the board! Note that these limits have nothing to do with the 3.3V supply pins found on Treehopper, which can comfortably source 500 mA — or the unfused 5V pin, which has no imposed current limit (other than that of your computer or smartphone).

Digital input

Treehopper's digital inputs are used to sample digital signals — i.e., signals that have either a LOW or HIGH state. Logic LOW (false) is considered a voltage less than or equal to 0.6V. Logic HIGH (true) is considered a voltage greater than or equal to 2.7V.

Treehopper pins are true 5V-tolerant signals; consequently, you do not need any sort of logic-level conversion or series-limiting resistor when using the pin as a digital input with a 5V source.

You can access the most recent digitalValue(), or use the digitalValueChanged event to subscribe to change notifications.

Analog inputs

Each Treehopper pin can be read using the on-board 12-bit ADC. There is no limit to the total number of analog pins activated at any time.

Output Format

When the pin is sampled and sent to the host, the value is simultaneously available to the user in three forms:

  • adcValue – the raw, 12-bit result from conversion.
  • analogValue – the normalized value of the ADC (from 0-1).
  • analogVoltage – the actual voltage at the pin (taking into account the reference level).

There are OnChanged events associated with each of these properties:

Reference Levels

Each pin has a configurable Treehopper::ReferenceLevel that can be used to measure the pin against. The possible reference levels are:

  • 3.3V generated by the on-board LDO, rated at 1.5% accuracy (default).
  • 3.7V (effective) reference derived from the on-chip 1.85V reference.
  • 2.4V on-chip reference rated at 2.1% accuracy.
  • 1.85V on-chip reference.
  • 1.65V on-chip reference, 1.8% accurate.
  • 3.3V (effective) reference that is derived from the on-chip 1.65V reference.

For most ratiometric applications — i.e., when measuring a device whose output is ratioed to its power supply — connect the sensor's power supply to the 3.3V supply pin the Treehopper and use the default 3.3V reference. The other reference options are provided for advanced scenarios that involve reading from precision voltage outputs accurately.

A note about pin reads

All of Treehopper's pins configured as digital or analog inputs are sampled continuously onboard; when any pin changes, this data is sent to the host device. When you access the digital or one of the analog value properties, you're accessing the last received data. This makes property reads instantaneous — keeping your GUI or application running responsively.

For almost all applications, changes to digital or analog inputs are to be reacted to (like with switches, interrupt outputs, encoders), or sampled (like with sensor outputs). Care must be taken, however, if you need to synchronize pin reads with other functions.

For example, consider the case where you electrically short pins 0 and 1 together on the board, and then run this code:

auto pin0 = board.pins[0];
auto pin1 = board.pins[1];
pin0.digitalValue(true);
if(pin1.digitalValue() == pin0.digitalValue())
{
// we generally won't get here, since pin1's digitalValue()
// isn't explicitly read from the pin when we access it; it only returns
// the last value read from a separate pin-reading thread
}

SoftPWM functionality

Each Treehopper pin can be used as a SoftPWM pin.

Performance Considerations

Writing values to (or changing pin modes of) Treehopper pins will flush to the OS's USB layer immediately, but there is no way of achieving guaranteed latency.

Occasional writes (say, on the order of every 20 ms or more) will usually flush to the port within a few hundred microseconds. If your application is chatty, or the bus you're operating on has other devices (especially isochronous devices like webcams), you may see long periods (a millisecond or more) of delay.

Analog pins take a relatively long time to sample; if you enable tons of analog inputs, the effective sampling rate will drop by up to two times.

Constructor & Destructor Documentation

◆ Pin()

Pin ( TreehopperUsb board,
uint8_t  pinNumber
)

Member Function Documentation

◆ adcValue()

int adcValue ( )

◆ analogValue()

double analogValue ( )

◆ analogVoltage()

double analogVoltage ( )

◆ digitalValue() [1/2]

void digitalValue ( bool  val)
overridevirtual

Note that if the current PinMode of the pin is not a digital output (i.e. not PinMode::PushPullOutput or PinMode::OpenDrainOutput), it will be set as PinMode::PushPullOutput before writing the value to the pin.

Reimplemented from DigitalOut.

◆ digitalValue() [2/2]

bool digitalValue ( )
overridevirtual

Reimplemented from DigitalIn.

◆ makeAnalogInput()

void makeAnalogInput ( )

◆ makeDigitalInput()

void makeDigitalInput ( )
overridevirtual

Implements DigitalIn.

◆ makePushPullOutput()

void makePushPullOutput ( )
overridevirtual

Implements DigitalOut.

◆ mode() [1/2]

void mode ( PinMode  value)

◆ mode() [2/2]

PinMode mode ( )

◆ referenceLevel() [1/2]

void referenceLevel ( AdcReferenceLevel  value)

◆ referenceLevel() [2/2]

AdcReferenceLevel referenceLevel ( )

◆ toggleOutput()

void toggleOutput ( )

Note that since digitalValue(bool) is ultimately called, if the current PinMode of the pin is not a digital output, it will automatically become a PinMode::PushPullOutput

Friends And Related Function Documentation

◆ TreehopperUsb

friend class TreehopperUsb
friend

Member Data Documentation

◆ adcValueChanged

Event<Pin, AdcValueChangedEventArgs> adcValueChanged

◆ analogValueChanged

Event<Pin, AnalogValueChangedEventArgs> analogValueChanged

◆ analogVoltageChanged

Event<Pin, AnalogVoltageChangedEventArgs> analogVoltageChanged

◆ digitalValueChanged

Event<DigitalIn, PinChangedEventArgs> digitalValueChanged
inherited

◆ pinNumber

int pinNumber
inherited

◆ spiModule

Spi* spiModule
inherited
