Dm632 Class Reference

Library for the SiTI DM632, DM633, and DM634 16-channel, 16-bit PWM-capable shift-register-type LED driver.

#include <Dm632.h>

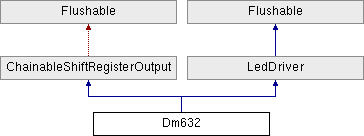

Inheritance diagram for Dm632:

Public Member Functions
	Dm632 (Spi &spi, SpiChipSelectPin *lat, double speed=6)
	Construct a DM632 16-channel, 16-bit PWM LED controller attached directly to an SPI port More...
	Dm632 (ChainableShiftRegisterOutput &upstreamDevice)
	Construct a DM632 16-channel, 16-bit PWM LED controller attached directly to an SPI port More...
virtual void	flush (bool force=false)
	flush changed data to the port expander More...
virtual void	updateFromCurrentValue ()
	Update internal data structures from current value More...
void	write (uint8_t *value)
	Immediately update all the pins at once with the given value. More...
double	brightness ()
	Gets the global brightness of the display. More...
void	brightness (double value)
	Sets the global brightness of the display. More...

Public Attributes
uint8_t *	currentValue
	The current value of the port. More...
int	numBytes
	The number of bytes wide this port is. More...
vector< Led >	leds
	The collection of LEDs that belong to this driver. More...
const bool	hasGlobalBrightnessControl
	Gets or sets whether this controller supports global _brightness control. More...
const bool	hasIndividualBrightnessControl
	Gets or sets whether this controller's LEDs have individual _brightness control (through PWM or otherwise). More...
bool	autoFlush
	Whether this interface should automatically flush new values or not. More...
Flushable *	parent
	Gets or sets the parent flushable device (if it exists); if this property is set by this driver, it is expected that flushing the parent will also flush this device. More...

Constructor & Destructor Documentation

Dm632() [1/2]

Dm632	(	Spi &	spi,
		SpiChipSelectPin *	lat,
		double	speed = 6
	)

Parameters

[in]	spi	The SPI port this LED driver is attached to
[in]	lat	The GPIO pin attached to the LAT pin
[in]	speed	The speed, in MHz, to use when communicating

Dm632() [2/2]

Dm632

(

ChainableShiftRegisterOutput &

upstreamDevice

)

Parameters

[in]

upstreamDevice

The upstream shift register this DM632 is attached to

Member Function Documentation

brightness() [1/2]

double brightness ( )

inherited

brightness() [2/2]

void brightness ( double  value )

inherited

If the display's hasGlobalBrightnessControl is true, native brightness control will be used. Otherwise, if the display's hasIndividualBrightnessControl is true, global brightness will be emulated by setting all

flush()

virtual void flush ( bool  force = false )

virtual

Parameters

[in]

force

whether to flush all data to the port expander, even if it doesn't appear to have been changed

Implements Flushable.

updateFromCurrentValue()

virtual void updateFromCurrentValue ( )

virtual

Implements ChainableShiftRegisterOutput.

write()

void write ( uint8_t *  value )

inherited

flush() will be implicity called.

Parameters

value

A value representing the data to write to the port

Returns

An awaitable task that completes upon successfully writing the value.

Member Data Documentation

autoFlush

bool autoFlush

inherited

currentValue

uint8_t* currentValue

inherited

Note that this value is numBytes wide.

hasGlobalBrightnessControl

const bool hasGlobalBrightnessControl

inherited

hasIndividualBrightnessControl

const bool hasIndividualBrightnessControl

inherited

leds

vector<Led> leds

inherited

numBytes

int numBytes

inherited

parent

Flushable* parent

inherited

This property is designed to make LED displays, which operate across groups of LEDs (and possibly groups of LED drivers), much more efficient to update. Many commonly-used LED drivers are shift registers that are chained together; since these cannot be individually addressed, any write to one must include a write to all the other ones. By properly setting the parent shift register in each chain, displays can optimize these updates.

---

The documentation for this class was generated from the following file:

• F:/Git/treehopper-sdk/C++/API/inc/Libraries/Displays/Dm632.h
