WriteOnlyParallelInterface Interface Reference

Represents an 8080-style parallel interface that can write data More...

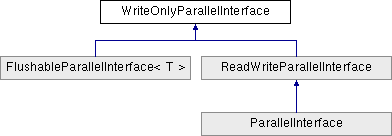

Inheritance diagram for WriteOnlyParallelInterface:

Public Member Functions
Task	WriteCommandAsync (uint[] command)
	Write one or more bytes to the command register More...
Task	WriteDataAsync (uint[] data)
	Write one or more bytes to the data register More...

Properties
bool	Enabled [get, set]
	Gets or sets whether the bus is enabled More...
int	DelayMicroseconds [get, set]
	The minimum number of microseconds to delay between each word write. More...
int	Width [get]
	Gets the width of the bus More...

Detailed Description

Represents an 8080-style parallel interface that can write data

Member Function Documentation

WriteCommandAsync()

Task WriteCommandAsync

(

uint []

command

)

Write one or more bytes to the command register

Parameters

command

The command data to write

Returns

An awaitable task that completes when the write operation finishes

Implemented in FlushableParallelInterface< T >, and ParallelInterface.

WriteDataAsync()

Task WriteDataAsync

(

uint []

data

)

Write one or more bytes to the data register

Parameters

data	The data to write

Returns

An awaitable task that completes when the write operation finishes

Implemented in FlushableParallelInterface< T >, and ParallelInterface.

Property Documentation

Enabled

bool Enabled

getset

Gets or sets whether the bus is enabled

DelayMicroseconds

int DelayMicroseconds

getset

The minimum number of microseconds to delay between each word write.

Width

int Width

get

Gets the width of the bus

---

The documentation for this interface was generated from the following file:

• F:/Git/treehopper-sdk/NET/API/Treehopper/IParallelInterface.cs
