Base interface representing pins capable of reading analog values More...
Public Member Functions | |
| Task | MakeAnalogInAsync () |
| Make this pin an ADC pin More... | |
Properties | |
| int | AdcValue [get] |
| Retrieve the last value obtained from the ADC. More... | |
| double | AnalogVoltage [get] |
| Retrieve the last voltage reading from the ADC. More... | |
| double | AnalogValue [get] |
| Retrieve the last reading from the ADC, expressed on a unit range (0.0 - 1.0) More... | |
| double | AnalogVoltageChangedThreshold [get, set] |
| Gets or sets the voltage threshold required to fire the AnalogVoltageChanged event. More... | |
| int | AdcValueChangedThreshold [get, set] |
| Gets or sets the value threshold required to fire the AdcValueChanged event. More... | |
| double | AnalogValueChangedThreshold [get, set] |
| Gets or sets the value threshold required to fire the AnalogValueChanged event. More... | |
Events | |
| OnAnalogVoltageChanged | AnalogVoltageChanged |
| Occurs when an analog voltage is changed, according to the set threshold. More... | |
| OnAnalogValueChanged | AnalogValueChanged |
| Occurs when an analog value is changed, according to the set threshold. More... | |
| OnAdcValueChanged | AdcValueChanged |
| Occurs when the normalized analog value is changed, according to the set threshold. More... | |
Detailed Description
Base interface representing pins capable of reading analog values
Member Function Documentation
◆ MakeAnalogInAsync()
| Task MakeAnalogInAsync | ( | ) |
Make this pin an ADC pin

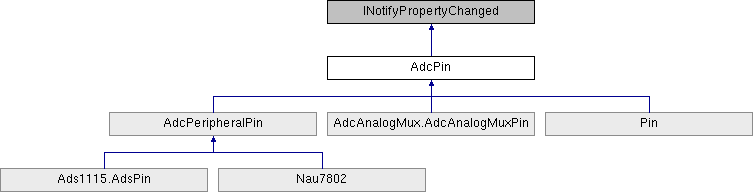

Implemented in Pin, AdcAnalogMux.AdcAnalogMuxPin, and AdcPeripheralPin.
Property Documentation
◆ AdcValue
|
get |
Retrieve the last value obtained from the ADC.
Treehopper has a 12-bit ADC, so ADC values will range from 0-4095.
◆ AnalogVoltage
|
get |
Retrieve the last voltage reading from the ADC.
◆ AnalogValue
|
get |
Retrieve the last reading from the ADC, expressed on a unit range (0.0 - 1.0)
◆ AnalogVoltageChangedThreshold
|
getset |
Gets or sets the voltage threshold required to fire the AnalogVoltageChanged event.
◆ AdcValueChangedThreshold
|
getset |
Gets or sets the value threshold required to fire the AdcValueChanged event.
◆ AnalogValueChangedThreshold
|
getset |
Gets or sets the value threshold required to fire the AnalogValueChanged event.
Event Documentation
◆ AnalogVoltageChanged
| OnAnalogVoltageChanged AnalogVoltageChanged |
Occurs when an analog voltage is changed, according to the set threshold.
The Changed event is raised when the 12-bit ADC value obtained is different from the previous reading by at least the value specified by AnalogVoltageChangedThreshold.
◆ AnalogValueChanged
| OnAnalogValueChanged AnalogValueChanged |
Occurs when an analog value is changed, according to the set threshold.
The Changed event is raised when the 10-bit ADC value obtained is different from the previous reading by at least the value specified by AdcValueChangedThreshold
◆ AdcValueChanged
| OnAdcValueChanged AdcValueChanged |
Occurs when the normalized analog value is changed, according to the set threshold.
The Changed event is raised when the value obtained is different from the previous reading.
The documentation for this interface was generated from the following file:
- F:/Git/treehopper-sdk/NET/API/Treehopper/AdcPin.cs
