Nintendo Entertainment System (NES) Controller More...

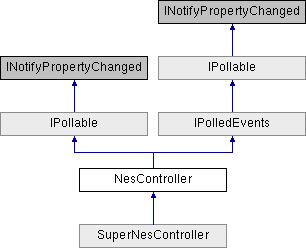

Inheritance diagram for NesController:

Public Member Functions
	NesController (Spi spi, SpiChipSelectPin ps)

virtual async Task	UpdateAsync ()
	Requests a reading from the controller and updates its data properties with the gathered values. More...

Protected Member Functions
void	RaiseDPadChanged ()

Protected Attributes
SpiDevice	dev

DPadState	dpad

Properties
Button	A `[get]`

Button	B `[get]`

Button	Start `[get]`

Button	Select `[get]`

DPadState	DPad `[get]`

bool	AutoUpdateWhenPropertyRead = true `[get, set]`

int	AwaitPollingInterval = 25 `[get, set]`

Events
DPadStateEventHandler	DPadStateChanged

PropertyChangedEventHandler	PropertyChanged

Detailed Description

Nintendo Entertainment System (NES) Controller

Constructor & Destructor Documentation

◆ NesController()

NesController	(	Spi	spi,
		SpiChipSelectPin	ps
	)

Member Function Documentation

◆ UpdateAsync()

virtual async Task UpdateAsync ( )

virtual

Requests a reading from the controller and updates its data properties with the gathered values.

Returns: An awaitable Task

Note that when AutoUpdateWhenPropertyRead is true (which it is, by default), this method is implicitly called when any sensor data property is read from — there's no need to call this method unless you set AutoUpdateWhenPropertyRead to false.

Unless otherwise noted, this method updates all sensor data simultaneously, which can often lead to more efficient bus usage (as well as reducing USB chattiness).

Implements IPollable.

Reimplemented in SuperNesController.
